Nano 3D printer

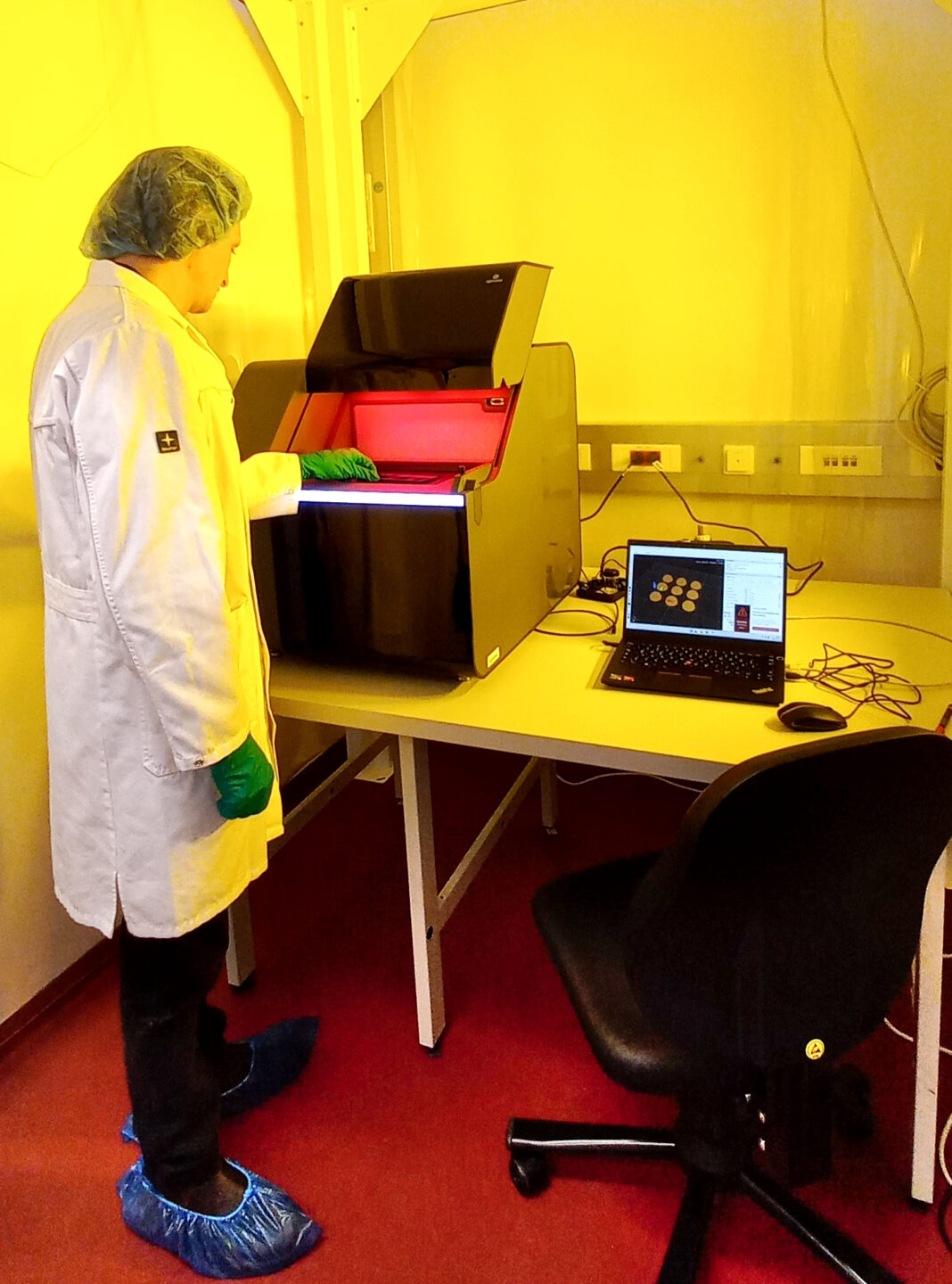

UpNano’s NanoOne
The NanoOne is a laser lithography system for the fabrication of the three-dimensional (3D)components from the nano to macro range. Structural details can be in the submicron range. The process used in the NanoOne is based on the principle of two photon polymerisation (2PP).
Specification:
- Minimal horizontal feature size ≥170 nm
- Minimal vertical feature size ≥550 nm
- Minimal surface roughness ≤10 nm
- Throughput >450 mm³/h
- Writing speed ≥1000 mm/s
- Accessible writing area 50x50 mm
- Part height up to 40 mm
- Objectives: 5X, 10X, 20X, 40X
Available Materials: https://www.upnano.at/materials/
User Support and Scientific Advice:
Rodolfo Previdi rodolfo.previdi@ist.ac.at
Lubuna Shafeek lubuna.shafeek@ist.ac.at
Matko Kandzija matko.kandzija@ist.ac.at
